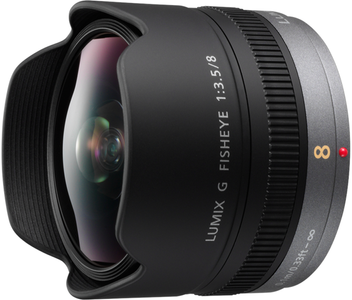

Comprising ten lenses in nine groups, the new lens system features an outstanding compactness, taking advantage of the Micro Four Thirds system standard to achieve dramatic downsizing to the worlds smallest and lightest size. The adoption of an ED lens achieves a stable descriptive performance from close-up to infinity minimizing chromatic aberration and distortion.
The closest focusing distance is as short as 0.1m, however, the LUMIX G FISHEYE 8mm / F3.5 incorporates inner focus system which enables a long working distance and users do not have to come closer to the subject even for the close-up shots.
The LUMIX G FISHEYE 8mm / F3.5 lens allows use of the high-speed and accurate contrast AF system when mounted on the LUMIX G Micro System cameras, for more comfortable and enjoyable shooting. Seven blades give the aperture a rounded shape that produces an attractively smooth effect in out-of-focus areas when shooting at larger aperture settings. Also, a sheet filter such as a gelatin filter can be inserted in the rear of the unit for free filter expression.
The inclusion of stepping motor makes the focusing action smooth and silent for use in both photo and movie recording. The lens also features a highly reliable metal mount, and uses multi-coated lens elements that minimize ghosts and flare to further enhance its optical performance. The optimally designed lens hood enables use even under strong sunlight.
|Lens Construction||10 elements in 9 groups (1 ED lens)|
|Mount||Micro Four Thirds mount|
|Focal Length||f=8mm (35mm camera equivalent 16mm)|
|Aperture Type||7 diaphragm blades / Circular aperture diaphragm|
|Closest Focusing Distance||0.1m / 0.33ft|
|Maximum Magnification||Approx. 0.20x / 0.40x (35mm camera equivalent)|
|Projection System||Equisolid angle projection system|
|Diagonal Angle of View||180°|
|Filter Size||Front : Mounting not possible / Rear : Sheet filter holder 22mm / 0.86in x 22mm / 0.86in|
|Max. Diameter||f60.7mm / 2.39in|
|Standard Accessory||Lens Cap, Lens Rear Cap, Lens Storage Bag|
|Overall Length (inches)||Approx. 51.7mm / 2.04in (from the tip of the lens to the base side of the lens mount)|
|Recommended Humidity||40%RH to 60%RH|
|Weight||Approx. 165g / 5.82oz|
|Lens Focal Length||8mm|
